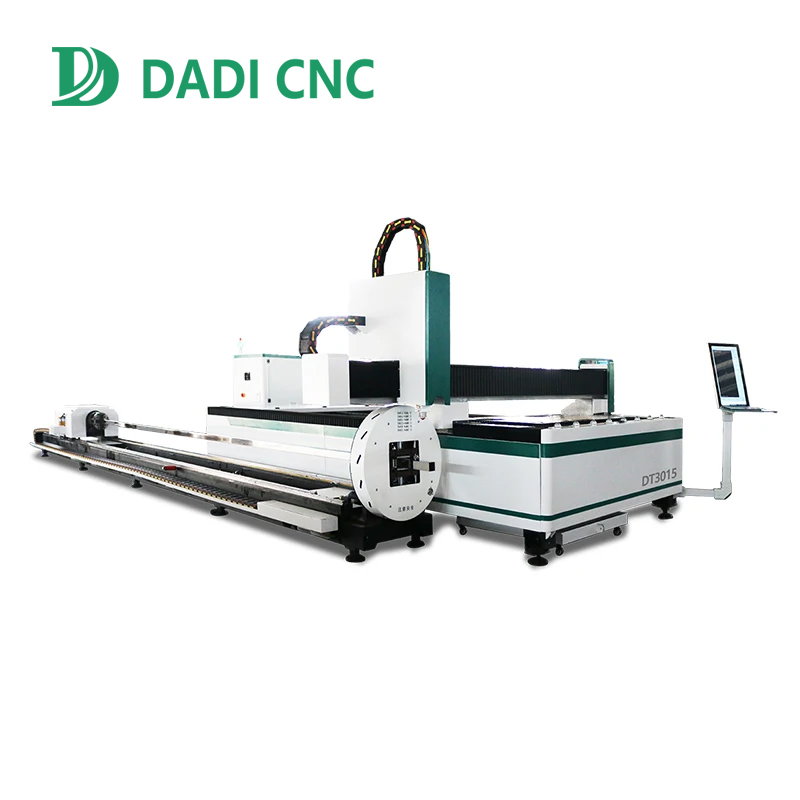

Platform plate and tube integrated laser cutting machine
I. Product features
1. Standard dedicated exchange platform, fast exchange speed, convenient loading and unloading, plate cutting and loading and unloading can be carried out at the same time, which can meet the needs of cutting plates and tubes at the same time.
2. Pneumatic chuck clamping is equipped with fully automatic electric/pneumatic chucks before and after, automatic clamping, and automatic determination of the tube center.
3. Pneumatic opening, large and constant clamping force, heavy tubes do not loosen or slip, ensuring cutting accuracy; special support frame to avoid pipe sagging and deformation, improve cutting accuracy and extend the service life of the chuck.
4. Supports city mouth cutting, double chuck clamping, suitable for all kinds of irregular pipe fittings.
5. Integrates plate cutting and tube cutting, can process all kinds of metal materials and various pipe fittings and plates; fully intelligent CNC system, simple operation.
II. System introduction
DACI CNC plate and tube integration can meet customers' requirements for cutting flat plates as well as cutting of various special-shaped pipes such as round tubes and square tubes. The machine tool is equipped with different chucks and fixtures for precision processing of pipes of different shapes and sizes. It can process common square pipes, round pipes, and rectangular pipes on the market. Round pipes can realize the plane drawing import function.
1. High-speed cutting
2. Low cost, simple operation
3. Wide range of processing materials, processing technology, strong flexibility
4. Energy saving and environmental protection, simple maintenance
5. High technology, high reliability, integrated design of electrical cabinet
6. High cost performance, standardized after-sales service
7. Atmosphere, beautiful and practical, safety protection design
8. Imported servo motor and guide bed transmission mechanism, small thermal deformation, high transmission accuracy
9. Wide application range, low operating cost
10. Easy to clean and safe
11. Narrow cutting slit, smooth cutting surface, low material consumption
12. Intelligent control large screen, simple operation, stable performance
13. The optical path system and control system are stable and reliable.
14. Reasonable structure, good performance, high-speed operation, powerful functions
15. Reasonable architecture, convenient operation, stable operation of laser, low maintenance cost
Application field:
Can cut a variety of metal plates and pipes, mainly suitable for fast cutting of stainless steel, carbon steel, manganese steel, copper plate, aluminum plate, galvanized plate, various alloy plates, rare metals and other materials
Covered industries:
Sheet metal, jewelry, glasses, mechanical equipment, lighting, kitchen and bathroom products, mobile communications, digital products, electronic components, watches, computer accessories, instruments, precision equipment, hardware molds, auto parts, craft gifts and other diversified industries.
Ⅲ. Cutting effect display
